WHINT Alibaba Cloud MNS Adapter for SAP Cloud Platform Integration

0

Functionality

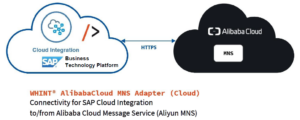

This Apache-Camel based Adapter for SAP Cloud Platform Integration (CPI) supports the MNS Service of Alibaba Cloud (Aliyun), a reliable way to establish a properly decoupled application integration using message queues and topics.

Features

  • Basic Authentication
  • Message Properties
  • Message Id, Request Id
  • Priority, Delay Second
  • DequeueCount
  • FirstDequeueTime, NextVisibilityTime
  • Message Processing Logs

Prerequisites

  • Works with SAP Cloud Platform Integration (CPI)
    • Uses the official Aliyun SDK for Java 8
    • Client API Version: 1.1.8
  • Deploy the ESA file provided by Whitepaper InterfaceDesign using your Eclipse which is connected to the Operations Server (Runtime)


Configuration Guide

  • Create a new sender or receiver communication channel and select the adapter “AliyunMNS” of vendor “whitepaper-id.com
  • Transport Protocol
    • HTTP
  • Message Protocol
    • Not Applicable
  • Connection
    • MNS Endpoint (hostname)
    • Access Key ID
    • Access Key Secret
    • Proxy (On-Premise deployment)
  • Processing
    • Queue Name
    • Topic Name
    • Filter Tag

You can set/use the following header values:

  • aliyun.PRIORITY
  • aliyun.MESSAGE_ID
  • aliyun.REQUEST_ID
  • aliyun.DELAY_SECOND
  • aliyun.DEQUEUE_COUNT
  • aliyun.FIRST_DEQUEUE_TIME
  • aliyun.NEXT_VISIBILITY_TIME
  • aliyun.RECEIPT_HANDLE

Example


Further Information
