Interface Demand Form


When asking for interface details (e.g. during a project implementation) it is useful to collect the information in a structured form (ideally in a digital way). Here´s a collection of useful information.

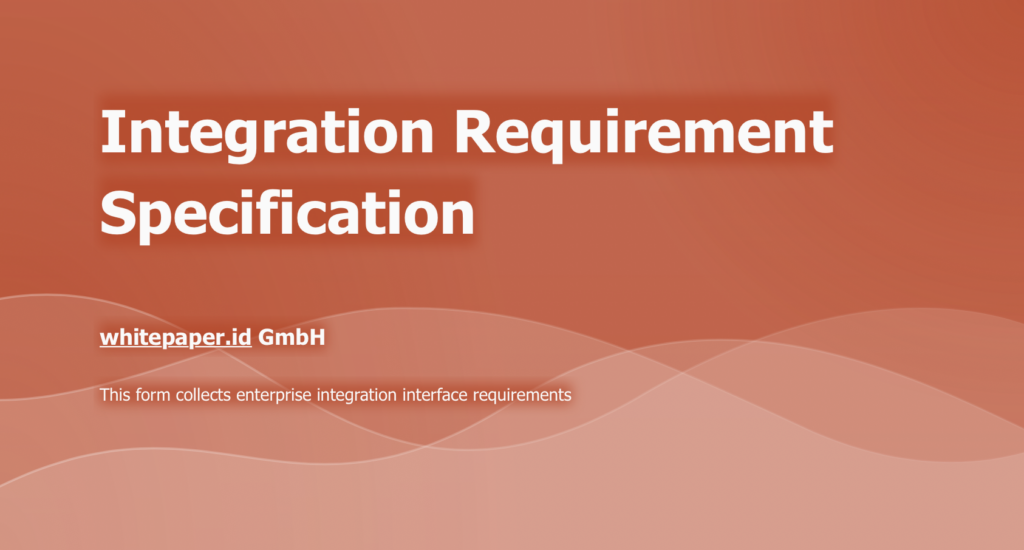

Interface Demand Form

The name of the form varies from “Interface Demand” to “Integration Requirement Specification” – it is important to collect as much information and as detailed as possible regarding the mandatory fields like:

  • Business Process
  • Involved Participants (Applications/Systems/Parties)
  • Data transferred
Mandatory information

All other technical information is “nice to have” and not always available from the start (especially when the demand is raised by functional, non-technical people).

The form is closing with questions about the timeline and contacts:

Project Timeline & Contacts

Here´s the full list:

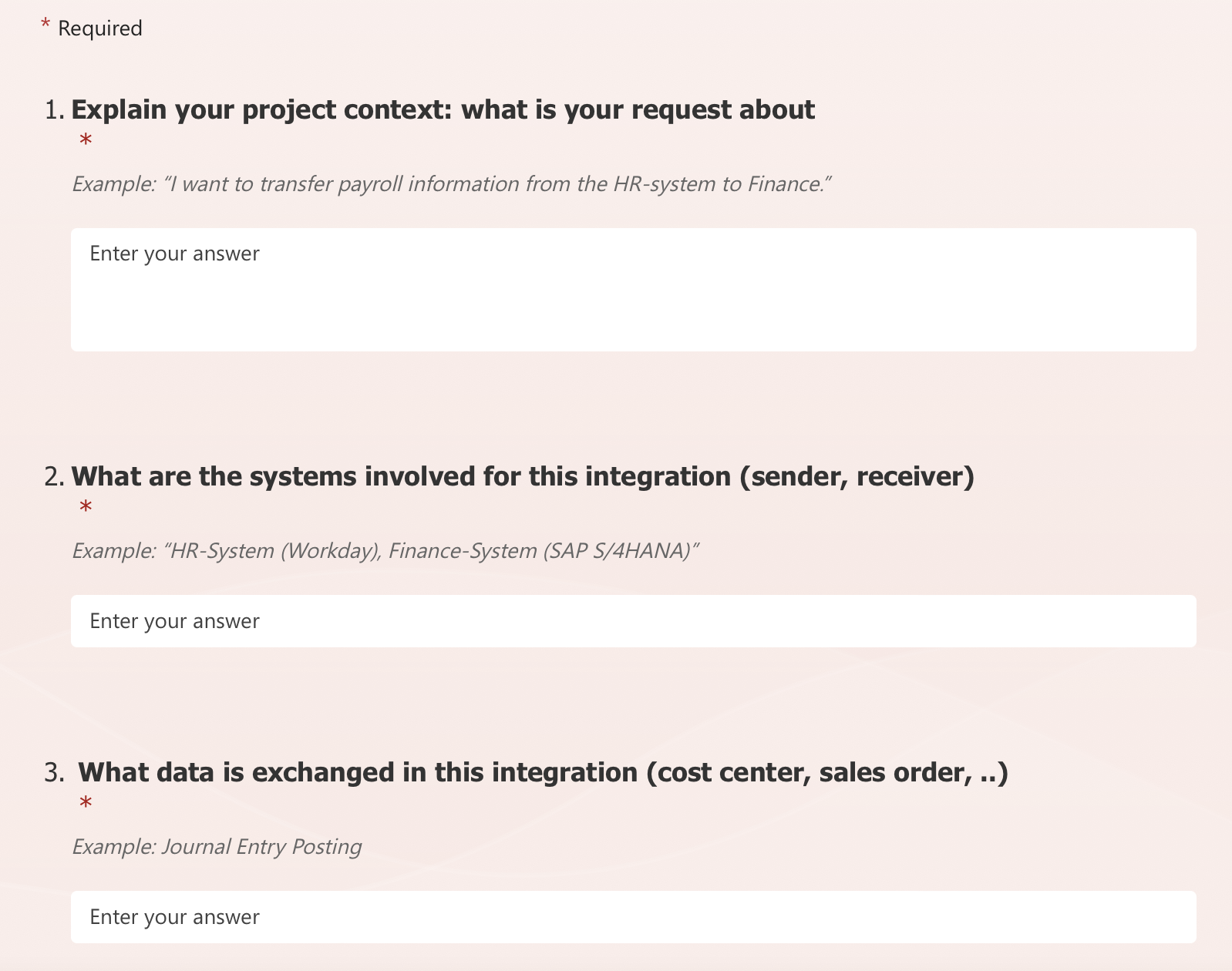

1. Explain your project context: what is your request about?

Example: “I want to transfer payroll information from the HR-system to Finance.”

2. What are the systems involved for this integration (sender, receiver)?

Example: “HR-System (Workday), Finance-System (SAP ECC)”

3. What is the type of information exchanged in this integration (cost center, sales order, ..)?

Example: “Journal Entry Posting”

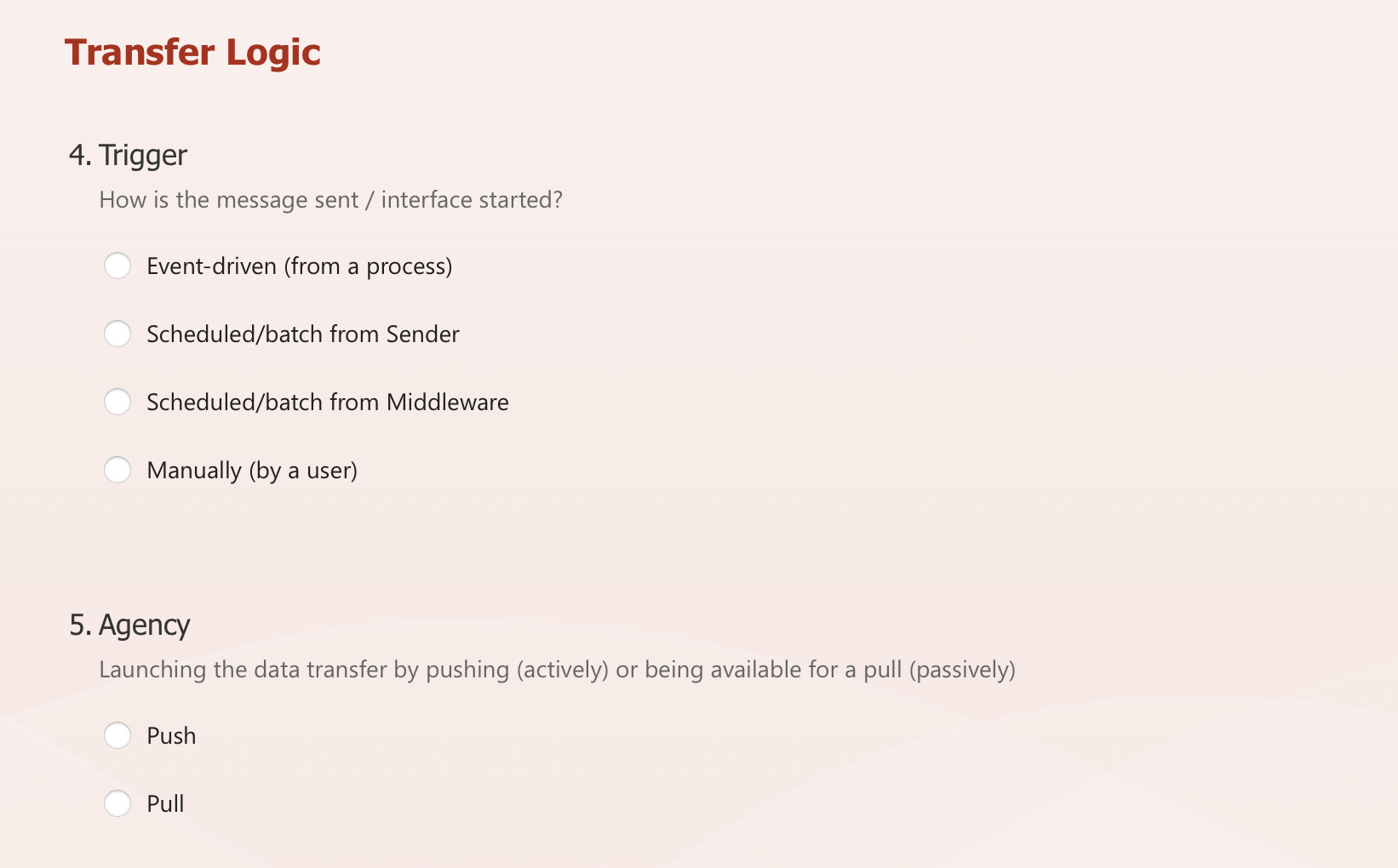

Transfer Logic:

4. Trigger

How is the message sent / interface started?

  • Event-driven (from a process)
  • Scheduled/batch from Sender
  • Scheduled/batch from Middleware
  • Manually (by a user)

5. Agency

Launching the data transfer by pushing (actively) or being available for a pull (passively)

  • Push
  • Pull

6. Coupling

Loose coupling (asynchronous) or direct via request-reply (synchronous)

  • Async (queued)
  • Sync (direct reply)

7. Cardinality

Amount of objects in one message

  • Single
  • Bulk

8. Error handling

Instructions (e.g. ignore, inform sender, …)

Example: “Periodic Job or manual execution as Push from HR-System (asynchronous) in bulk messages: up to 500 employees/message. If errors occur for individual records, all other records shall be sent back to the sender system in a error protocol file.”

Integration Contract & Transformation

9. API Definitions

incl. format, protocol, authentication for sender & receiver

10. Mapping requirements

How to transform one message to another (e.g. as an Excel Sheet)

11. Additional information

e.g. integration logic, specific data transfer/security/… requirements

Example: “Workday: File Export PAYROLL via CSV on SFTP server, folder /export/toSAP/QA, SAP: iDoc ACC_DOCUMENT02), see attached Mapping Excel-Document”

Service Level

12. Criticality

The execution has to be performed immediately (with a high priority) or not

  • high
  • medium
  • low

13. Expected Volume Messages

with average size per timeframe (e.g. 100 msg/hour with 150 KB payload)

Example: “High criticality with 20 msg / month, avg. size 3 MB (XML)”

Project Timeline & Contacts

14. Integration Test Start Date

15. Go-Live Date

16. Contacts

Who is responsible, who can provide additional information, who is developing the API (if applicable)

Example: “Go-live with payroll run 06.2023, Workday contact: Max Mustermann, SAP expert: Eva Müller”
